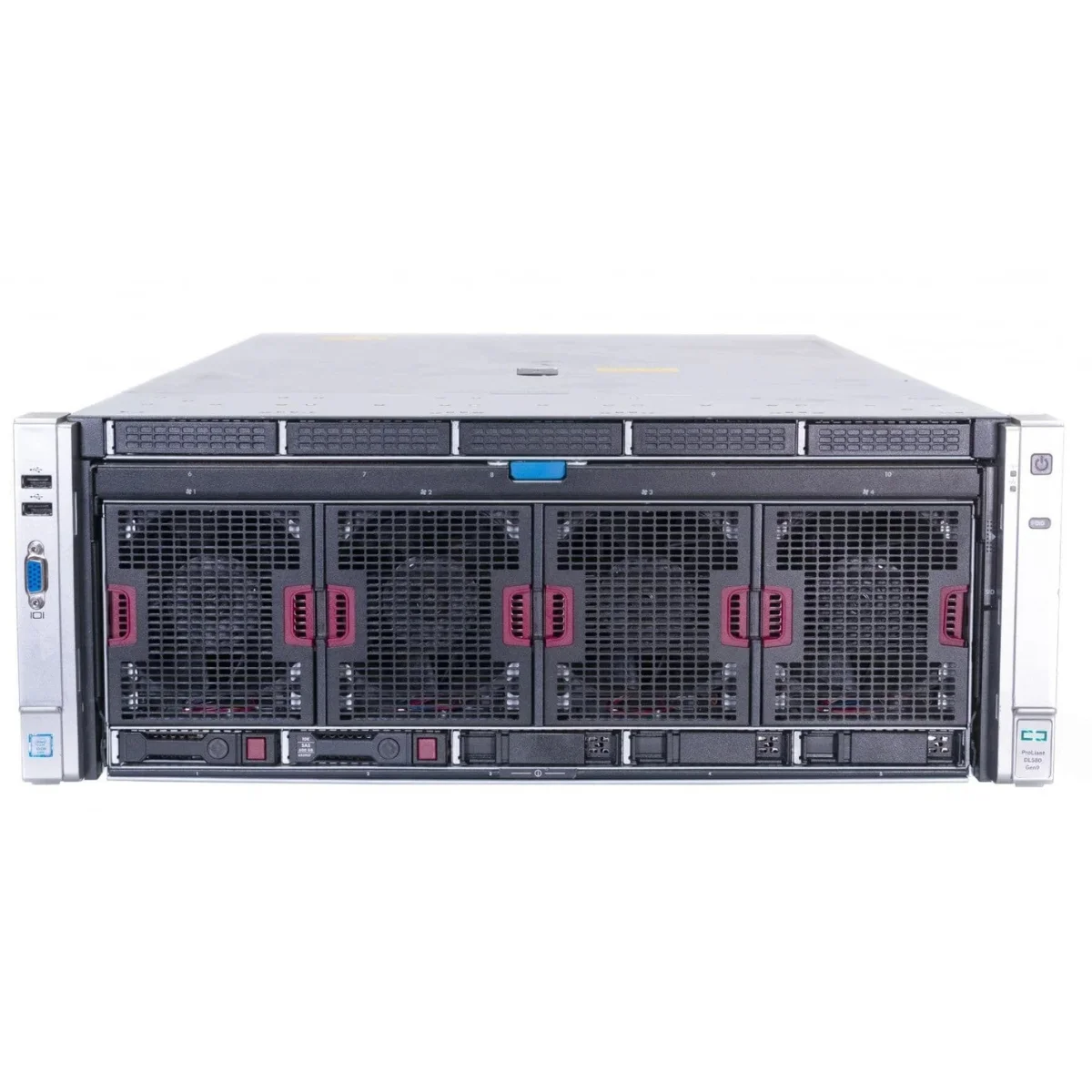

HPE ProLiant DL580 Gen9 5×2.5″ Server

The HPE ProLiant DL580 Gen9 5×2.5″ Server stands as one of Hewlett Packard Enterprise’s most advanced 4-socket rack servers, designed for businesses that need maximum scalability, mission-critical availability, and high-performance computing. Equipped with the powerful Intel® Xeon® E7 v3/v4 processors, it offers enterprises a platform built for data-intensive workloads, virtualization, consolidation, and in-memory computing applications.

This extended overview dives deeper into its architecture, scalability, management features, and real-world applications, making it a perfect choice for CIOs, system architects, and IT decision-makers seeking long-term infrastructure stability.

Server Architecture and Design

The HPE ProLiant DL580 Gen9 5×2.5″ Server features a 4U rack-mounted form factor that provides maximum compute density while maintaining expandability. Its modular architecture ensures easy servicing, future upgrades, and efficient airflow for cooling.

Key architectural advantages:

• Tool-less design for hot-plug drives, PSUs, and fans

• Integrated cable management for optimized airflow

• Modular storage backplane supporting upgrades to higher drive counts

• Support for redundant components to minimize downtime

The design philosophy behind the DL580 Gen9 is centered on scalability, reliability, and ease of management, making it suitable for data centers where uptime and performance are non-negotiable.

CPU Performance and Scalability

At the heart of the HPE ProLiant DL580 Gen9 5×2.5″ Server are up to 4x Intel® Xeon® E7-4800/8800 v3/v4 processors.

Highlights include:

• Up to 96 cores and 192 threads in a fully loaded configuration

• Hyper-Threading Technology for parallelized workloads

• Intel® Turbo Boost for dynamic performance scaling

• Large shared cache (up to 60MB per processor)

• High-speed QPI links improving communication between CPUs

This makes the server capable of handling:

• SAP HANA and in-memory databases

• Enterprise resource planning (ERP) and customer relationship management (CRM) platforms

• AI/ML model training requiring multi-threaded performance

• Cloud consolidation by running hundreds of VMs per chassis

Memory Performance and Reliability

The HPE ProLiant DL580 Gen9 5×2.5″ Server supports 96 DIMM slots, delivering up to 12TB of DDR4 SmartMemory.

Memory Features

• Lockstep mode for error resilience

• Memory mirroring for redundancy

• Online spare mode to prevent downtime

• Support for RDIMMs, LRDIMMs, and 3DS DIMMs

Enterprise Benefits

• Large virtual machine density without bottlenecks

• Faster data analytics and caching

• Support for real-time applications such as financial trading or medical imaging

Storage Flexibility

The 5×2.5″ SFF configuration provides enterprises with a compact yet flexible storage setup.

• Hot-plug SAS/SATA SSDs for balanced speed and reliability

• Enterprise-class NVMe SSDs for high IOPS workloads

• RAID options through HPE Smart Array Controllers

• Scalable with optional expansion kits

Typical deployments include:

• SSD-based tiers for mission-critical applications

• NVMe storage for ultra-low latency tasks

• Hybrid storage setups balancing cost and performance

Expansion and Networking Capabilities

The HPE ProLiant DL580 Gen9 5×2.5″ Server is future-proofed with:

• 9 PCIe Gen3 expansion slots

• Support for accelerator cards, GPUs, or high-speed NICs

• FlexibleLOM technology with 1GbE, 10GbE, 25GbE, and 40GbE options

• Multiple USB 3.0 ports for modern peripheral support

This ensures the server can adapt to AI, HPC, and advanced virtualization use cases.

Power, Cooling, and Energy Efficiency

The HPE ProLiant DL580 Gen9 5×2.5″ Server comes with redundant hot-plug Platinum Plus PSUs (1200W/1500W), delivering:

• High-efficiency energy savings

• N+N redundancy for maximum uptime

• ASHRAE A3/A4 compliance, enabling use in environments with extended operating ranges

Cooling is managed through:

• Hot-plug fans with N+1 redundancy

• Intelligent thermal sensors

• Optimized airflow via modular chassis design

Management and Security

Integrated Management

• HPE iLO 4 with advanced remote management

• RESTful API for automation and integration

• HPE OneView for centralized infrastructure management

Security Features

• UEFI Secure Boot

• TPM 2.0 support

• HPE Secure Encryption for data-at-rest protection

This combination ensures IT teams maintain full control, monitoring, and security enforcement.

Supported Operating Systems

The server supports a wide range of operating systems, making it versatile for any IT environment:

• Windows Server 2012/2016/2019

• VMware vSphere/ESXi

• Red Hat Enterprise Linux (RHEL)

• SUSE Linux Enterprise Server (SLES)

• Oracle Linux

• Ubuntu Server

• Citrix XenServer

Use Cases and Applications

The HPE ProLiant DL580 Gen9 5×2.5″ Server is ideal for:

• Enterprise databases (Oracle, SQL Server, SAP HANA)

• Virtualization platforms with high VM densities

• Business-critical workloads such as ERP and CRM

• AI/ML training and deep learning with accelerator support

• Large-scale analytics and BI

• Private and hybrid cloud deployments

Why Choose the HPE ProLiant DL580 Gen9 5×2.5″ Server?

• Scalable performance with 4 CPUs and 12TB of memory

• Flexible storage options (SAS, SATA, NVMe)

• High availability with redundant PSUs and fans

• Comprehensive security with TPM and encryption

• Intelligent management via iLO 4 and OneView

• Future-proof architecture with PCIe Gen3 and accelerator support

Conclusion

The HPE ProLiant DL580 Gen9 5×2.5″ Server is a powerhouse designed to meet the complex, mission-critical needs of modern enterprises. Its blend of scalability, reliability, and flexibility makes it the go-to solution for organizations looking to run databases, virtualization, HPC, and AI/ML workloads at scale.

By choosing the DL580 Gen9, businesses invest in a future-ready platform that delivers maximum performance, security, and uptime, ensuring that IT infrastructure remains competitive and resilient in rapidly evolving digital landscapes.

Check full specs and datasheet below: Spec sheet
