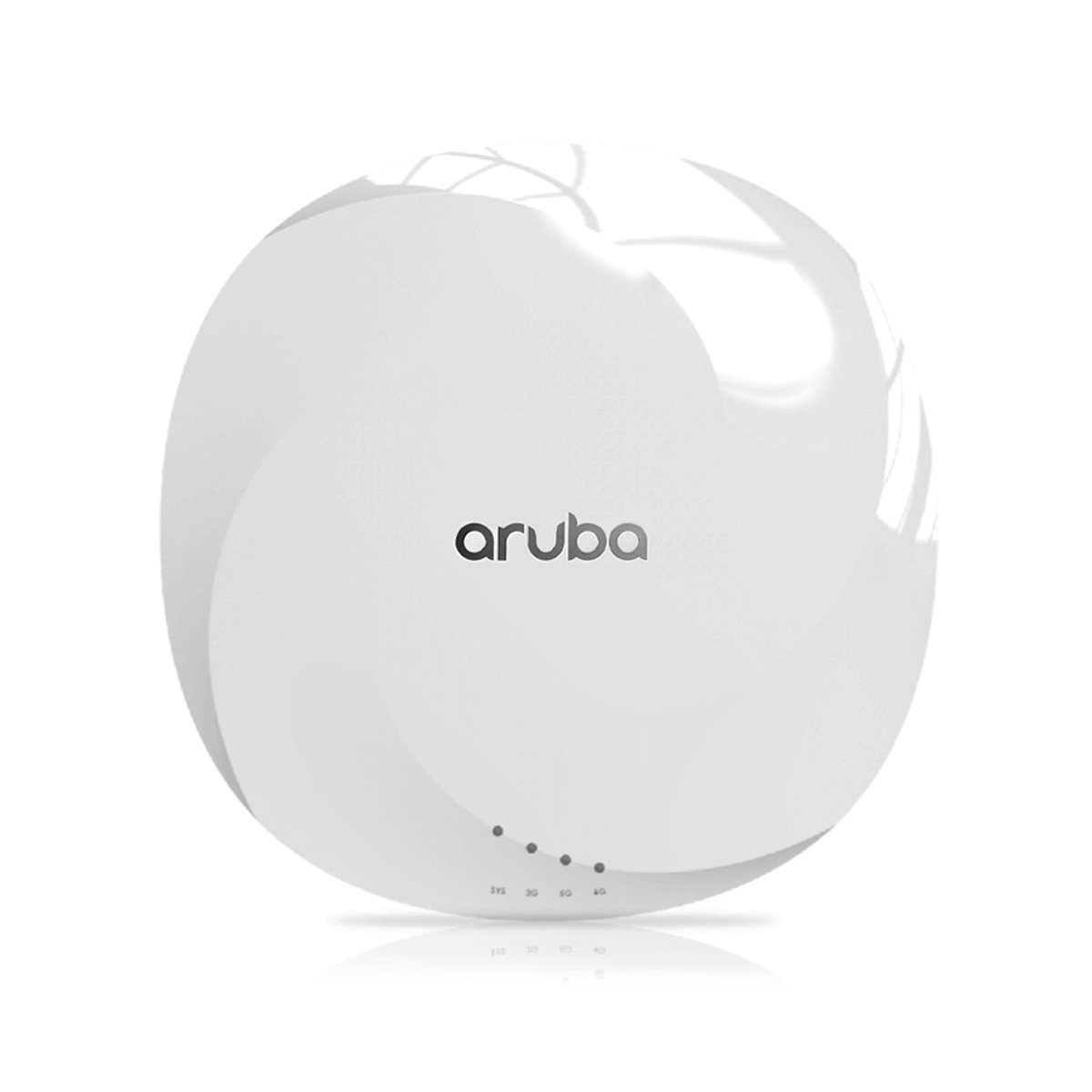

HPE Aruba AP-635 Wi-Fi 6E Access Point | R7J27A
HPE Aruba AP-635 Wi-Fi 6E Access Point | R7J27A
Click to enlarge
HPE Aruba AP-635 Wi-Fi 6E Access Point | R7J27A
HPE Aruba AP-635 Wi-Fi 6E Access Point | R7J27A

HPE Aruba AP-635 Wi-Fi 6E Access Point | R7J27A

  • 635 (RW)                                   Campus
  • RJ-45                                         Wi-Fi 6E
  • wireless access point               IEEE 802.11ax
  • ZigBee, Bluetooth                    2.4 GHz, 5 GHz, 6 GHz

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Add to compare
Add to wishlist
20 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Payment Methods:

Condition : Used

Categories: ,

HPE Aruba Networking AP-635 (RW) Tri Radio 2×2 802.11ax Wi-Fi 6E Internal Antennas Campus AP

HPE Aruba Networking 630 Series Campus Access Points are designed to take advantage of the 6 GHz band using three radios for comprehensive tri-band coverage. With 6 GHz, wireless capacity is more than doubled allowing enterprises to meet the today needs and plan for future growth. The Wi-Fi 6E APs allow countries to take advantage of Wi-Fi 6E once it is approved in country through automated notification and easy deployment of 6 GHz regulatory tables. The 630 Series delivers a maximum aggregate 3.9 Gbps data rate for higher throughput and faster speeds for fixed low power indoor use. With up to seven 160 MHz channels, the 630 APs maximizes performance for low-latency, bandwidth-hungry applications. The ultra tri-band filtering eliminates interference between 5 GHz and 6 GHz and prevents gaps in channel coverage. To ensure high availability, the 630 Series includes dual port hitless failover for ethernet and power.
HPE Aruba Networking AP-635 (RW) Tri Radio 2×2 802.11ax Wi-Fi 6E Internal Antennas Campus AP

HPE Aruba Networking AP-635 (RW) Tri Radio 2x2 802.11ax Wi-Fi 6E Internal Antennas Campus AP

The Aruba AP-635 delivers high-performance wireless connectivity with Wi-Fi 6 technology, offering faster speeds and greater efficiency. It supports dual-band operation on 2.4GHz and 5GHz, with Beamforming technology for enhanced signal strength and coverage.

AP-635 Specifications:

  • 3.90 Gbit/s speed for reliable, high-performance connectivity.
  • Wi-Fi 6 (802.11ax) for seamless communication.
  • 2.5 Gigabit Ethernet for fast wired connections.
  • Built-in power supply for stable voltage.
  • Data encryption to protect sensitive information.
  • Internal antenna for strong connectivity.
  • Desktop form factor for extended use

HPE Aruba AP-635 (RW) R7J27A Wi-Fi 6E Wireless AP - Newegg.com

More Capacity and Wider Channels with Wi-Fi 6E

  • The HPE Aruba Networking 630 Series Campus Access Points deliver a maximum aggregate 3.9 Gbps data rate for higher throughput and faster speeds.
  • With up to seven 160 MHz channels, the APs help maximize performance for low-latency, bandwidth-hungry applications.
  • It is designed for low power indoor environments (LPI).

Less Interference and Fewer Coverage Gaps

  • The HPE Aruba Networking 630 Series Campus Access Points provide comprehensive tri-band coverage using three radios.
  • The HPE Aruba Networking unique ultra tri-band filtering mitigates interference among 5 GHz and 6 GHz radios and prevents gaps in channel coverage.
  • Since only Wi-Fi 6E enabled devices can operate in the 6 GHz band, it is less congested with no interference from legacy devices.

Compra Access Point HP Aruba AP-635 Wi-Fi 6E | Xiomel

Extends capabilities of Wi-Fi 6 (802.11ax) APs

  • HPE Aruba Networking 630 Series Campus Access Points are based on the 802.11ax standard so multi-user efficiency and security features are applied to Wi-Fi 6E.
  • Unique HPE Aruba Networking capabilities include ClientMatch, Advanced Cellular Coexistence, and Intelligent Power Monitoring to optimize user experience and energy use.

AP-635 Ensures Business Continuity and High Availability

  • High availability with two HPE Smart Rate Ethernet ports for 1-2.5 Gbps to offer true hitless failover for both data and power.
  • Cloud, controller, or controllerless operation modes address all campus, branch and remote use cases.

Key Features of AP-635:

  • Flexible Management: Supports controller-based and controllerless configurations.
  • Smart Performance: Features like Air Match and ClientMatch optimize network performance.
  • Strong Security: Includes advanced encryption protocols and a built-in firewall.
  • Durable Design: Built with quality materials and multiple mounting options for various environments.

Overview:

  • The Aruba AP-635 delivers high-performance wireless connectivity with Wi-Fi 6 technology, offering faster speeds and greater efficiency. It supports dual-band operation on 2.4GHz and 5GHz, with Beamforming technology for enhanced signal strength and coverage.
  • The Aruba AP-635 is an ideal choice for organizations of all sizes, combining high performance, advanced security, and reliability
  • You can also view the full product datasheet here

Specification

Overview

Product Code

R7J27A
Number of Ports

E0, E1: Two Ethernet wired network ports (RJ-45)
Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX
2.5Gbps speed complies with NBase-T and 802.3bz specifications
POE-PD: 48Vdc (nominal) 802.3af/at/bt POE (class 3 or higher)
802.3az Energy Efficient Ethernet (EEE)
Management Port

Yes
Operating System

The Aruba AP-635 runs on AOS (Aruba Operating System), designed for high-performance, secure wireless networking.
Features:
• Centralized Management: Managed via AirWave or Cloud Management.
Power Over Ethernet (PoE) Supported

Yes
Wireless Communication Standard

5 GHz Radio Frequency, 802.11ax
Interfaces Connectivity

1 x HPE Smart Rate – RJ-45 ,1 x 2.5 GB-T – RJ-45, 1 x USB 2.0 – Type A ,1 x console – micro-USB
Product dimensions

22.1 x 22.1 x 5.08 cm
Item Weight

1.3 kg
Estimated Coverage Range

• 2.4 GHz Band:
• Range: Up to 150 feet (45 meters) indoors and 300 feet (90 meters) outdoors.
• Ideal for longer-range connectivity but offers lower speeds compared to higher frequencies.
• 5 GHz Band:
• Range: Typically 75–100 feet (23–30 meters) indoors and 200–250 feet (60–75 meters) outdoors.
• Provides faster speeds with slightly reduced range compared to 2.4 GHz.
• 6 GHz Band:
• Range: Generally 50–75 feet (15–23 meters) indoors.
• Offers higher speeds and more channels, but the range is shorter due to higher frequency attenuation.
Performance

Maximum data rate (2.4 GHz): 287 Mbps ¦ Maximum data rate (5 GHz): 1.2 Gbps ¦ Maximum data rate (6 GHz): 2.4 Gbps ¦ Aggregate bandwidth: 3.9 Gbps
Frequency Band Class

2.4 GHz, 5 GHz, 6 GHz
Min / Max Operating Temperature

0C to +50C / +32F to +122F
Power consumption operational

26.4 Watt
Spread Spectrum Method

OFDM, DSSS, OFDMA
Input voltage

12 Vdc (+/- 5%) or 48 Vdc (nominal) POE
Radio coverage

Indoor, tri radio, 2.4GHz, 5GHz and 6GHz (concurrent) 802.11ax 2×2 MIMO
Data Transfer Rate

2.4 Gbps
Maximum Number of Users

1024
Max wireless Data Rates

Up to 287 Mbps (2.4 GHz), 1.2 Gbps (5 GHz), and 2.4 Gbps (6 GHz), totaling 3.9 Gbps.
Warrenty

6 months

HPE Aruba Networking AP-635 (RW) Tri Radio 2×2 802.11ax Wi-Fi 6E Internal Antennas Campus AP

HPE Aruba Networking 630 Series Campus Access Points are designed to take advantage of the 6 GHz band using three radios for comprehensive tri-band coverage. With 6 GHz, wireless capacity is more than doubled allowing enterprises to meet the today needs and plan for future growth. The Wi-Fi 6E APs allow countries to take advantage of Wi-Fi 6E once it is approved in country through automated notification and easy deployment of 6 GHz regulatory tables. The 630 Series delivers a maximum aggregate 3.9 Gbps data rate for higher throughput and faster speeds for fixed low power indoor use. With up to seven 160 MHz channels, the 630 APs maximizes performance for low-latency, bandwidth-hungry applications. The ultra tri-band filtering eliminates interference between 5 GHz and 6 GHz and prevents gaps in channel coverage. To ensure high availability, the 630 Series includes dual port hitless failover for ethernet and power.
HPE Aruba Networking AP-635 (RW) Tri Radio 2×2 802.11ax Wi-Fi 6E Internal Antennas Campus AP

HPE Aruba Networking AP-635 (RW) Tri Radio 2x2 802.11ax Wi-Fi 6E Internal Antennas Campus AP

The Aruba AP-635 delivers high-performance wireless connectivity with Wi-Fi 6 technology, offering faster speeds and greater efficiency. It supports dual-band operation on 2.4GHz and 5GHz, with Beamforming technology for enhanced signal strength and coverage.

AP-635 Specifications:

  • 3.90 Gbit/s speed for reliable, high-performance connectivity.
  • Wi-Fi 6 (802.11ax) for seamless communication.
  • 2.5 Gigabit Ethernet for fast wired connections.
  • Built-in power supply for stable voltage.
  • Data encryption to protect sensitive information.
  • Internal antenna for strong connectivity.
  • Desktop form factor for extended use

HPE Aruba AP-635 (RW) R7J27A Wi-Fi 6E Wireless AP - Newegg.com

More Capacity and Wider Channels with Wi-Fi 6E

  • The HPE Aruba Networking 630 Series Campus Access Points deliver a maximum aggregate 3.9 Gbps data rate for higher throughput and faster speeds.
  • With up to seven 160 MHz channels, the APs help maximize performance for low-latency, bandwidth-hungry applications.
  • It is designed for low power indoor environments (LPI).

Less Interference and Fewer Coverage Gaps

  • The HPE Aruba Networking 630 Series Campus Access Points provide comprehensive tri-band coverage using three radios.
  • The HPE Aruba Networking unique ultra tri-band filtering mitigates interference among 5 GHz and 6 GHz radios and prevents gaps in channel coverage.
  • Since only Wi-Fi 6E enabled devices can operate in the 6 GHz band, it is less congested with no interference from legacy devices.

Compra Access Point HP Aruba AP-635 Wi-Fi 6E | Xiomel

Extends capabilities of Wi-Fi 6 (802.11ax) APs

  • HPE Aruba Networking 630 Series Campus Access Points are based on the 802.11ax standard so multi-user efficiency and security features are applied to Wi-Fi 6E.
  • Unique HPE Aruba Networking capabilities include ClientMatch, Advanced Cellular Coexistence, and Intelligent Power Monitoring to optimize user experience and energy use.

AP-635 Ensures Business Continuity and High Availability

  • High availability with two HPE Smart Rate Ethernet ports for 1-2.5 Gbps to offer true hitless failover for both data and power.
  • Cloud, controller, or controllerless operation modes address all campus, branch and remote use cases.

Key Features of AP-635:

  • Flexible Management: Supports controller-based and controllerless configurations.
  • Smart Performance: Features like Air Match and ClientMatch optimize network performance.
  • Strong Security: Includes advanced encryption protocols and a built-in firewall.
  • Durable Design: Built with quality materials and multiple mounting options for various environments.

Overview:

  • The Aruba AP-635 delivers high-performance wireless connectivity with Wi-Fi 6 technology, offering faster speeds and greater efficiency. It supports dual-band operation on 2.4GHz and 5GHz, with Beamforming technology for enhanced signal strength and coverage.
  • The Aruba AP-635 is an ideal choice for organizations of all sizes, combining high performance, advanced security, and reliability
  • You can also view the full product datasheet here

Specification

Overview

Product Code

R7J27A
Number of Ports

E0, E1: Two Ethernet wired network ports (RJ-45)
Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX
2.5Gbps speed complies with NBase-T and 802.3bz specifications
POE-PD: 48Vdc (nominal) 802.3af/at/bt POE (class 3 or higher)
802.3az Energy Efficient Ethernet (EEE)
Management Port

Yes
Operating System

The Aruba AP-635 runs on AOS (Aruba Operating System), designed for high-performance, secure wireless networking.
Features:
• Centralized Management: Managed via AirWave or Cloud Management.
Power Over Ethernet (PoE) Supported

Yes
Wireless Communication Standard

5 GHz Radio Frequency, 802.11ax
Interfaces Connectivity

1 x HPE Smart Rate – RJ-45 ,1 x 2.5 GB-T – RJ-45, 1 x USB 2.0 – Type A ,1 x console – micro-USB
Product dimensions

22.1 x 22.1 x 5.08 cm
Item Weight

1.3 kg
Estimated Coverage Range

• 2.4 GHz Band:
• Range: Up to 150 feet (45 meters) indoors and 300 feet (90 meters) outdoors.
• Ideal for longer-range connectivity but offers lower speeds compared to higher frequencies.
• 5 GHz Band:
• Range: Typically 75–100 feet (23–30 meters) indoors and 200–250 feet (60–75 meters) outdoors.
• Provides faster speeds with slightly reduced range compared to 2.4 GHz.
• 6 GHz Band:
• Range: Generally 50–75 feet (15–23 meters) indoors.
• Offers higher speeds and more channels, but the range is shorter due to higher frequency attenuation.
Performance

Maximum data rate (2.4 GHz): 287 Mbps ¦ Maximum data rate (5 GHz): 1.2 Gbps ¦ Maximum data rate (6 GHz): 2.4 Gbps ¦ Aggregate bandwidth: 3.9 Gbps
Frequency Band Class

2.4 GHz, 5 GHz, 6 GHz
Min / Max Operating Temperature

0C to +50C / +32F to +122F
Power consumption operational

26.4 Watt
Spread Spectrum Method

OFDM, DSSS, OFDMA
Input voltage

12 Vdc (+/- 5%) or 48 Vdc (nominal) POE
Radio coverage

Indoor, tri radio, 2.4GHz, 5GHz and 6GHz (concurrent) 802.11ax 2×2 MIMO
Data Transfer Rate

2.4 Gbps
Maximum Number of Users

1024
Max wireless Data Rates

Up to 287 Mbps (2.4 GHz), 1.2 Gbps (5 GHz), and 2.4 Gbps (6 GHz), totaling 3.9 Gbps.
Warrenty

6 months
