HP T530 TPC-W041-TC Thin Client

Introduction

The HP T530 Thin Client (Model: TPC-W041-TC) is a compact, fan-less thin client engineered to provide reliable performance, enterprise-class security, and seamless integration with modern virtual desktop infrastructure (VDI) and cloud environments. Designed by HP with a focus on scalability, manageability, and energy efficiency, the T530 represents a robust endpoint solution for businesses deploying Citrix®, VMware®, Microsoft®, or cloud-based workspaces.

Processor & Graphics

At the heart of the HP T530 lies the AMD Embedded GX-215JJ dual-core system-on-chip (SoC) processor. Built on AMD’s embedded architecture, this CPU runs at a base frequency of 1.5 GHz with burst capability up to 2.0 GHz, providing sufficient computing power for thin client workloads.

The integrated AMD Radeon™ R2E GPU ensures smooth rendering of 2D/3D graphics and supports multiple high-resolution displays. Dual DisplayPort outputs allow the T530 to drive up to two 4K monitors simultaneously at 60Hz, enabling efficient multitasking in enterprise settings.

Memory & Storage

The HP T530 supports DDR4-1866 SODIMM memory, starting at 4 GB and upgradeable up to 16 GB. The adoption of DDR4 over DDR3 results in higher bandwidth and improved power efficiency.

For storage, the device relies on M.2 SATA solid-state drives (SSDs). Depending on configuration, options range from 8 GB flash storage for lightweight deployments, to 128 GB or even 512 GB SSDs for more advanced enterprise requirements. The use of SSD technology ensures fast boot times, improved system responsiveness, and longer lifecycle reliability compared to mechanical drives.

Operating Systems & Software Support

The HP T530 offers flexibility in software environments with the following OS options:

• Windows 10 IoT Enterprise for Thin Clients – offering familiarity, rich management tools, and support for Microsoft Remote Desktop Services.

• HP ThinPro OS – a Linux-based OS optimized for thin client environments, featuring a user-friendly interface and advanced security settings.

• HP Smart Zero Core – a streamlined firmware-based environment designed for zero clients, providing instant-on capability and minimal maintenance overhead.

These OS choices allow IT administrators to tailor deployments based on business needs—whether requiring rich Windows compatibility or a lightweight, secure Linux-based solution.

Connectivity & Ports

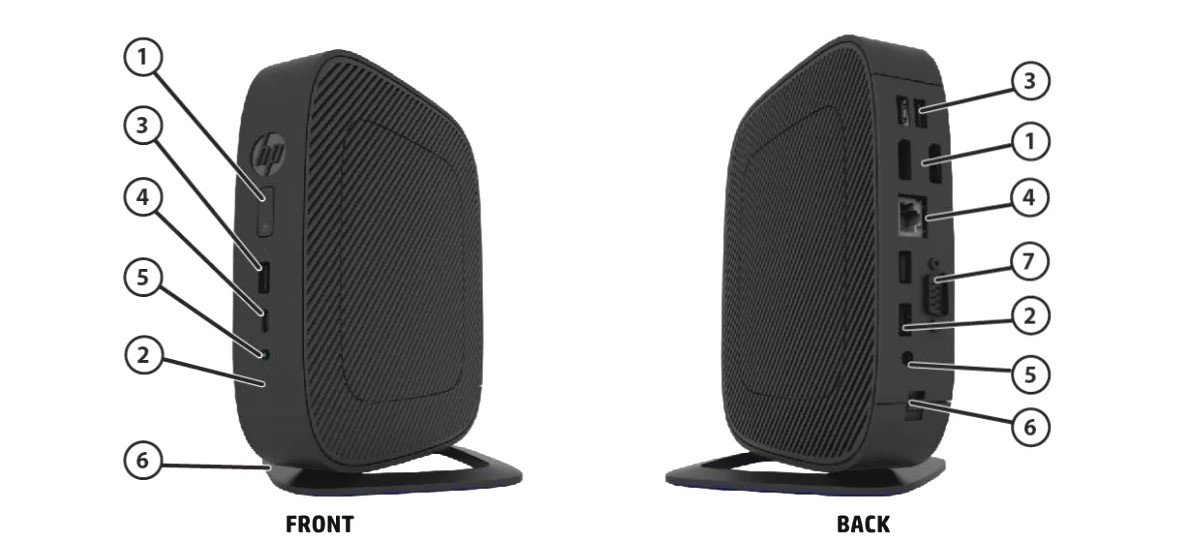

“HP T530 Thin Client – Front and back view showcasing all connectivity ports including USB-C, DisplayPort, Ethernet, audio, and power.”

The HP T530 Thin Client includes a diverse set of I/O ports, ensuring compatibility with legacy peripherals and modern connectivity standards.

• USB Ports:

  • 1 × USB-C (front)

  • 3 × USB 3.1 Gen 1

  • 2 × USB 2.0

• Video Outputs:

  • 2 × DisplayPort 1.2 (supporting up to 4K resolution at 60Hz)

  • 1 × VGA (optional, via expansion)

• Networking:

  • Integrated Gigabit Ethernet (RJ-45)

  • Optional internal/external Wi-Fi modules with Bluetooth 4.2 support

• Other:

  • 1 × Serial port (DB-9)

  • 1 × Audio line-in / line-out

This combination ensures that the device can integrate easily with both modern and legacy enterprise infrastructures.

Security Features

Security is central to the HP T530’s design. Key features include:

• Trusted Platform Module (TPM 2.0) for hardware-level encryption and secure authentication.

• Write Filter Protection to safeguard against unauthorized software changes.

• HP ThinPro/Smart Zero environments with locked-down firmware reduce the attack surface.

• Secure Boot and BIOS protection against rootkits and malware.

These capabilities ensure that sensitive enterprise environments remain secure and compliant.

Dimensions, Weight, and Power

The HP T530 Thin Client is designed for compact workspaces with the following physical characteristics:

• Dimensions (without stand): 200 × 200 × 35 mm (7.87 × 7.87 × 1.38 in)

• Weight (with stand): ~962.8 g (2.12 lb)

• Volume: 1.4 liters

It operates silently due to its fan-less design, reducing noise in office environments and improving reliability.

Power efficiency is another highlight:

• Uses a 19.5 V DC, 45 W external adapter

• Energy Star certified

• Extremely low idle power consumption (<4 W in idle states)

Performance Benchmarks

According to third-party benchmarking (Geekbench 4):

• Single-Core Score: ~1523

• Multi-Core Score: ~2342

While not intended for heavy computing, this level of performance is more than sufficient for typical thin client tasks such as running VDI sessions, accessing cloud applications, and multimedia streaming.

Manageability & Deployment

The T530 integrates with enterprise IT infrastructure through:

• HP Device Manager – centralized management for deploying updates and monitoring fleets.

• PXE Boot and remote BIOS configuration for large-scale deployments.

• Support for Citrix, VMware Horizon, Microsoft RDS, and Amazon WorkSpaces environments.
