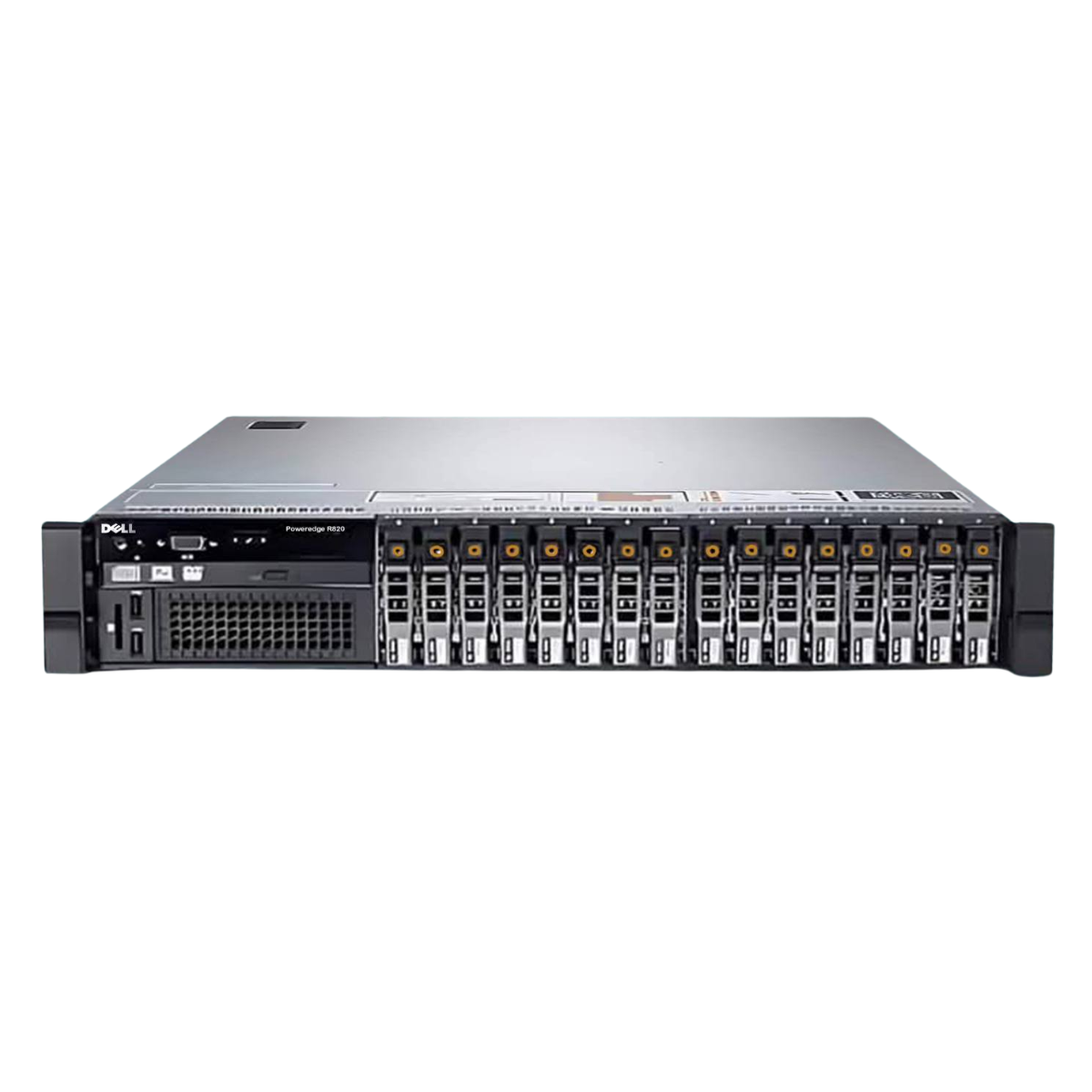

Dell EMC PowerEdge R820 16×2.5″ Server

Check full specs and datasheet below: Technical Guide

Specification

Overview

Form factor

2U

Processor

Intel Xeon processor E5‐4600 product family

Ram type

DDR3

Total Memory slots

48 DIMM slots

Max memory

Up to 1.5TB DDR3 up to 1600MT/s

PCIe slots

7 PCIe slots:
2 x16 full‐height,  half‐length
1 x8 full‐height,  half‐length
3 x8 half‐height, half‐length
1 x8 full‐height, half‐length for the RAID controller

Support hard drive

Up to 16 x 2.5‐inch hot‐plug SAS, SATA or SSD

Support raid controller

PERC H710P
-External HBAs (RAID):
PERC H810
-External HBAs (non-RAID):
6Gbps SAS HBA

Network controller

Broadcom® 5720 4x1Gb Base‐T
Intel I350 4x1Gb  Base‐T
Intel X540 2x1Gb + 2x10Gb Base‐T
Broadcom 57800S 2x1Gb + 2x10Gb Base‐T
Broadcom 57800S 2x1Gb + 2x10Gb SFP+
Broadcom 57840S 4x10Gb SFP+
Mellanox® ConnectX®‐3 Dual Port 40GbE QSFP+
ConnectX‐3 Dual Port 10GbE DA/SFP+

I/O Port

-Front:
2 x USB 2.0
1 x VGA
1 x vFlash SD slot
-Rear:
2 x USB 2.0
1 x VGA
1 x Serial (DB-9)
1 x iDRAC Ethernet
Network: Typically 4 x 1GbE (upgradable to 10GbE options)
2 x Power inputs

Power supply

Titanium efficiency 750W AC power  supply
Platinum efficiency 750W or 1100W AC power supply (auto‐ranging)
1100W DC power supply

Remote management

iDRAC7 Express (default) or iDRAC7 Enterprise (upgrade option), both with Lifecycle Controller 8GB or 16GB vFlash media (upgrade options)

Operating system

Microsoft Windows Server®  2012
Microsoft Windows Server 2012 R2 (includes Hyper‐V®)
Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper‐V)
Novell®  SUSE®  Linux  Enterprise Server
Red Hat®  Enterprise Linux®
-Virtualization options:
Citrix® XenServer®
VMware vSphere including ESXi™
Red Hat Enterprise Virtualization®

Dimensions

Height: 86.8mm (3.41 in)
Width : 434mm (17 in)
Depth : 777.6mm ( 31 in)

Weight

Max : 29.5 kg (65 lb)

Operation temperature

10°C to 35°C (50°F to 95°F)
