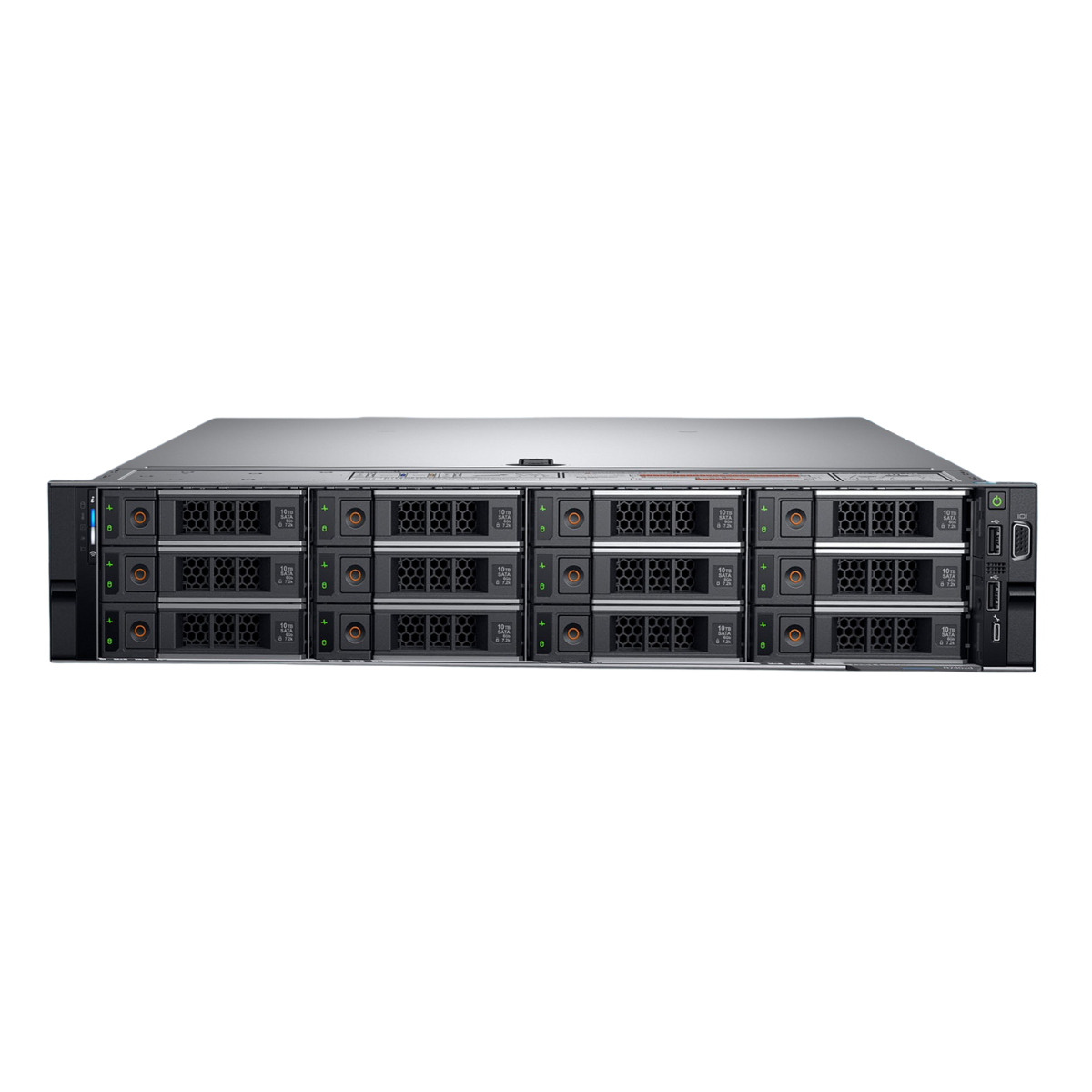

The Dell EMC PowerEdge R740XD 12×3.5″ Server is designed to deliver an ideal balance of performance, scalability, and flexibility for modern data center workloads. Whether you are deploying virtualized environments, software-defined storage, or high-performance computing applications, the PowerEdge R740XD 12×3.5″ Server ensures your business can operate efficiently and reliably. This 2U dual-socket rack server supports a variety of storage, memory, and processing configurations, making it the perfect solution for organizations seeking both storage capacity and high-performance compute.
The Dell EMC PowerEdge R740XD 12×3.5″ Server offers numerous advantages for enterprises:
Maximize storage scalability: With support for up to 24 NVMe drives or 12×3.5” SAS/SATA HDDs, the R740XD 12×3.5″ Server can handle massive storage requirements.
Flexible workload acceleration: Supports GPU and FPGA acceleration to optimize workloads, including machine learning, analytics, and HPC.
High-performance computing: Powered by up to two Intel® Xeon® Scalable processors, providing up to 28 cores per processor, the PowerEdge R740XD 12×3.5″ Server delivers exceptional processing power.
Advanced management capabilities: OpenManage Enterprise and iDRAC9 enable automated and remote server management, simplifying IT operations.
Enhanced data protection: Security features, including Secure Boot, System Lockdown, and System Erase, ensure data integrity and cyber resilience.
By choosing the Dell EMC PowerEdge R740XD 12×3.5″ Server, businesses gain a server that scales seamlessly with growth, reduces management overhead, and protects critical enterprise data.
The Dell EMC PowerEdge R740XD 12×3.5″ Server supports up to two Intel® Xeon® Scalable processors, each with up to 28 cores, delivering enterprise-grade compute performance. Ideal for virtualization, databases, and mission-critical applications, these processors allow the server to handle heavy workloads efficiently.
Memory is a key component of server performance. The PowerEdge R740XD 12×3.5″ Server offers:
24 DDR4 DIMM slots supporting RDIMM/LRDIMM
Speeds up to 2666 MT/s
Maximum capacity up to 3TB
Optional NVDIMM support up to 192GB
Registered ECC memory ensuring error-free and reliable performance
This configuration ensures fast application response times and excellent virtualization performance.
The Dell EMC PowerEdge R740XD 12×3.5″ Server offers unmatched storage flexibility:
Front bays: Up to 12×3.5” SAS/SATA HDDs or 24 NVMe SSDs
Mid bays: Up to 4×3.5” or 4×2.5” drives, NVMe or SAS/SATA
Rear bays: Up to 2×3.5” or 4×2.5” drives, NVMe or SAS/SATA
Boot optimized storage: 2x M.2 SSDs (120GB or 240GB)
RAID options: PERC H730P, H740P, H840, or software RAID (S140)
High throughput: PCIe Gen3 slots for maximum I/O performance
With these options, the R740XD 12×3.5″ Server can balance between performance and capacity depending on the workload requirements.
The PowerEdge R740XD 12×3.5″ Server provides flexible power and cooling solutions:
Hot-plug redundant power supplies from 495W to 2000W
Optional 48VDC and HVDC configurations
Up to 6 redundant hot-plug fans
Efficient thermal management ensuring optimal server uptime
Rack Form Factor: 2U
Maximum Depth: 715.5mm
Designed to fit in standard data center racks
Optional LCD or Security bezel for enhanced physical security
The Dell EMC PowerEdge R740XD 12×3.5″ Server is built with intelligent management tools:
iDRAC9 with Lifecycle Controller for agent-free server management
OpenManage Enterprise & Essentials for simplified monitoring
QuickSync 2 wireless module for mobile server access
Integrations with Microsoft System Center, VMware vCenter™, and BMC software
These tools reduce administrative overhead and allow IT teams to focus on strategic projects.
Cyber resilience is built into the PowerEdge R740XD 12×3.5″ Server:
TPM 1.2/2.0 optional
Secure Boot and System Lockdown
System Erase for secure data deletion
Protected component supply chain
These features guarantee that data and workloads remain secure from factory to retirement.
Multiple network daughter card options: 1GE, 10GE, 25GE
Front ports: VGA, 2x USB 2.0, dedicated iDRAC Direct Micro-USB
Rear ports: VGA, Serial, 2x USB 3.0, dedicated iDRAC network port
PCIe Gen3 risers supporting up to 8 slots (max 4×16)
GPU/FPGA accelerator support for enhanced performance
The Dell EMC PowerEdge R740XD 12×3.5″ Server supports all major enterprise operating systems:
Canonical Ubuntu LTS
Citrix XenServer
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi
The R740XD 12×3.5″ Server is versatile and supports various enterprise workloads:
Software-defined storage: ScaleIO and VMware vSAN deployments
Virtualization: Running multiple virtual machines efficiently
Database hosting: SQL, Oracle, and high-performance analytics
High-performance computing (HPC): GPU and FPGA acceleration
Virtual desktop infrastructure (VDI): Supporting large-scale VDI deployments
Power-efficient design reduces operational costs
Intelligent cooling with redundant fans ensures energy efficiency
Energy Star certified configurations available
Advanced power management through OpenManage Power Center
The Dell EMC PowerEdge R740XD 12×3.5″ Server is a powerful, flexible, and secure server platform that meets the demanding needs of modern enterprises. Its scalable storage, high-performance processors, and advanced management tools make it the ideal choice for organizations seeking reliability, scalability, and future-ready infrastructure. For businesses investing in virtualization, software-defined storage, or HPC, the PowerEdge R740XD 12×3.5″ Server provides unmatched value, ensuring consistent performance and enhanced operational efficiency.
| Form factor |
2U |
|---|---|
| Processor |
Up to two Intel® Xeon® Scalable processors |
| No. Of processor socket |
2 |
| No. of fan |
Up to 6 hot plugs fans with full redundancy |
| Ram type |
DDR4 |
| Total Memory slots |
24 DIMM slots |
| Max memory |
3TB DDR4 up to 2666MT/s |
| PCle slots |
Riser options with p to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots |
| Support raid controller |
-Internal controllers: PERC H730P, H740P, Software RAID (SWRAID) S140 |
| Support hard drive |
Front bays: up to 12 x 3.5” SAS/SATA HDD max 144TB |
| Network controller |
4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE |
| I/O Port |
-Network daughter card options: |
| Power supply |
Titanium : 750W |
| Remote management |
IPMI 2.0 compliant |
| Operating system |
Canonical® Ubuntu® LTS |
| Dimensions |
Height : 86.8m (3.4”) |
| Weight |
33.1kg (73.0lbs.) |
| Operation temperature |
10°C to 35°C (50°F to 95°F) |
