Description

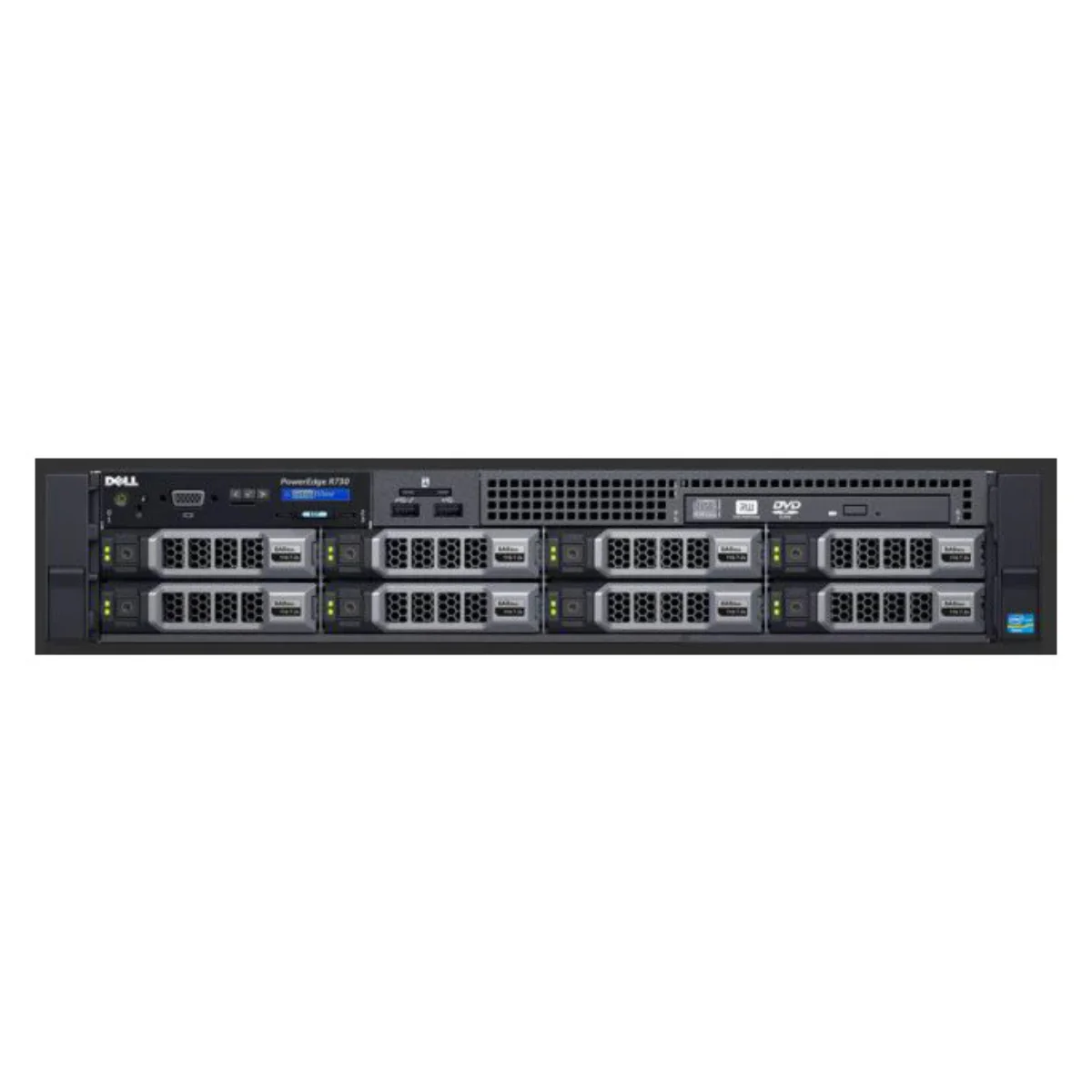

Dell EMC PowerEdge R730 8×3.5″ Server

is a versatile and high-performance 2U rack server designed to handle a wide range of demanding workloads for midsize and large enterprises. Built to excel in data-intensive environments, this server is ideal for applications such as data warehousing, e-commerce platforms, Virtual Desktop Infrastructure (VDI), database management, and high-performance computing (HPC) as a data node. When configured with 3.5-inch drives, the Dell EMC PowerEdge R730 8×3.5″ Server can deliver up to 64TB of high-speed internal storage, making it perfect for mission-critical applications that require rapid access to large datasets.

Powered by the Intel® Xeon® processor E5-2600 v4 product family, the Dell EMC PowerEdge R730 8×3.5″ Server provides exceptional compute performance across multiple workloads. Combined with advanced DDR4 memory support, enterprises can take full advantage of the server’s large memory capacity to accelerate data access and optimize application performance. Its dual-processor configuration, high-speed QPI links, and multiple cache options ensure that even the most complex and resource-intensive applications operate seamlessly.

Key highlights of the Dell EMC PowerEdge R730 8×3.5″ Server architecture:

• Dual Intel Xeon E5-2600 v4 processors with up to 22 cores per CPU.

• Up to 24 DDR4 DIMM slots supporting high-capacity memory up to 3TB.

• High-speed QPI interconnects for efficient CPU-to-CPU communication.

• Optimized for HPC, VDI, database, and e-commerce workloads.

• 2U rack form factor for dense and scalable enterprise deployments.

Storage Flexibility and I/O Options

The Dell EMC PowerEdge R730 8×3.5″ Server offers extensive storage flexibility to support both high-performance and high-capacity workloads. The server can accommodate up to 8 x 3.5-inch HDDs or SSDs, as well as up to 16 x 2.5-inch drives, providing organizations with a wide range of storage options. This makes the Dell EMC PowerEdge R730 8×3.5″ Server ideal for applications requiring rapid data access, large-scale databases, or business intelligence workloads.

With advanced RAID support through controllers such as PERC H330, H730, and H730P, along with external PERC H830 options, the server ensures data protection and integrity. Non-RAID configurations are supported via 12Gb/s SAS HBAs, offering high-speed connectivity for demanding storage environments. Combined with up to seven PCIe 3.0 expansion slots, the Dell EMC PowerEdge R730 8×3.5″ Server provides the flexibility to add GPUs, high-performance network cards, or accelerators to further optimize application performance.

Storage and I/O highlights:

• Up to 8 x 3.5” HDDs/SSDs or 16 x 2.5” drives for flexible storage.

• Maximum internal storage up to 64TB with 8TB NL-SAS drives.

• RAID options: PERC H330, H730, H730P, PERC S130 (software RAID).

• Non-RAID support via 12Gb/s SAS HBAs.

• Seven PCIe 3.0 expansion slots for GPUs, NICs, and accelerators.

Virtualization and GPU Optimization

The Dell EMC PowerEdge R730 8×3.5″ Server is engineered to support dense virtualization and GPU-accelerated workloads. With support for up to two internal GPU accelerators, this server enables cost-effective deployment of virtual desktops, high-performance computing tasks, and imaging environments. The combination of high memory capacity, multiple PCIe slots, and GPU integration allows organizations to consolidate resources and reduce infrastructure costs while maintaining peak performance.

This server is ideal for creating scalable virtual environments, enabling midrange medical imaging, VDI, and HPC workloads. By leveraging the Dell EMC PowerEdge R730 8×3.5″ Server, enterprises can improve CPU and GPU utilization, enhance data throughput, and achieve high levels of virtualization density. It provides a flexible and reliable platform for consolidating multiple workloads into a single high-performance server environment.

Virtualization and GPU features:

• Supports up to two internal GPU accelerators.

• Ideal for VDI, HPC, and medical imaging workloads.

• High memory and I/O capacity for dense virtualization.

• Optimizes CPU and GPU utilization for complex workloads.

• Reduces infrastructure costs while maintaining performance.

Intelligent Management and Automation

The Dell EMC PowerEdge R730 8×3.5″ Server includes integrated Dell Remote Access Controller (iDRAC8) with Lifecycle Controller, providing automated deployment, monitoring, and system management. IT teams can streamline server configuration, updates, and troubleshooting, minimizing manual intervention and reducing potential errors. With 8GB or 16GB vFlash media upgrades and iDRAC Quick Sync, administrators gain fast and secure management access to the Dell EMC PowerEdge R730 8×3.5″ Server anytime and anywhere.

Dell OpenManage Essentials and OpenManage Mobile provide centralized monitoring and automation across multiple servers. The server also supports integration with Microsoft System Center, VMware vCenter™, and third-party management tools such as HP Operations Manager, IBM Tivoli Netcool, and CA Network and Systems Management. These capabilities enable organizations to deploy servers rapidly, maintain high availability, and ensure operational efficiency with minimal administrative overhead.

Management and automation highlights:

• iDRAC8 with Lifecycle Controller for automated deployment and monitoring.

• 8GB and 16GB vFlash media options for faster configuration and updates.

• Centralized management via Dell OpenManage Essentials and Mobile.

• Integration with Microsoft System Center, VMware vCenter™, and third-party tools.

• Simplified lifecycle management and high availability support.

Compatibility, High Availability, and Enterprise Value

The Dell EMC PowerEdge R730 8×3.5″ Server supports multiple operating systems, including Microsoft Windows Server 2008, 2012, and 2012 R2 with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, and VMware ESXi. Optional embedded hypervisors such as Citrix XenServer and VMware vSphere ESXi provide additional virtualization flexibility. Its 2U rack form factor, combined with ReadyRails II sliding or static rails, enables quick, tool-less installation in 4-post or 2-post racks while supporting optional tool-less cable management arms.

Equipped with ECC memory, hot-plug drives, redundant cooling and power, and internal dual SD modules, the Dell EMC PowerEdge R730 8×3.5″ Server ensures maximum uptime and reliability. Advanced monitoring, proactive system alerts, and high availability clustering support make it ideal for enterprise environments where downtime is not an option. By combining high-performance computing, flexible storage, GPU acceleration, and intelligent management, the Dell EMC PowerEdge R730 8×3.5″ Server provides a scalable, reliable, and cost-effective solution for midsize and large enterprises seeking a robust IT infrastructure.

Enterprise value highlights:

• Supports multiple OS and embedded hypervisors for virtualization.

• 2U rack form factor with ReadyRails II for flexible deployment.

• ECC memory, hot-plug drives, redundant power and cooling for high availability.

• GPU and expansion options for enhanced performance and consolidation.

• Scalable and reliable solution for demanding enterprise workloads.

Check full specs and datasheet below: Spec sheet, Technical Guide
