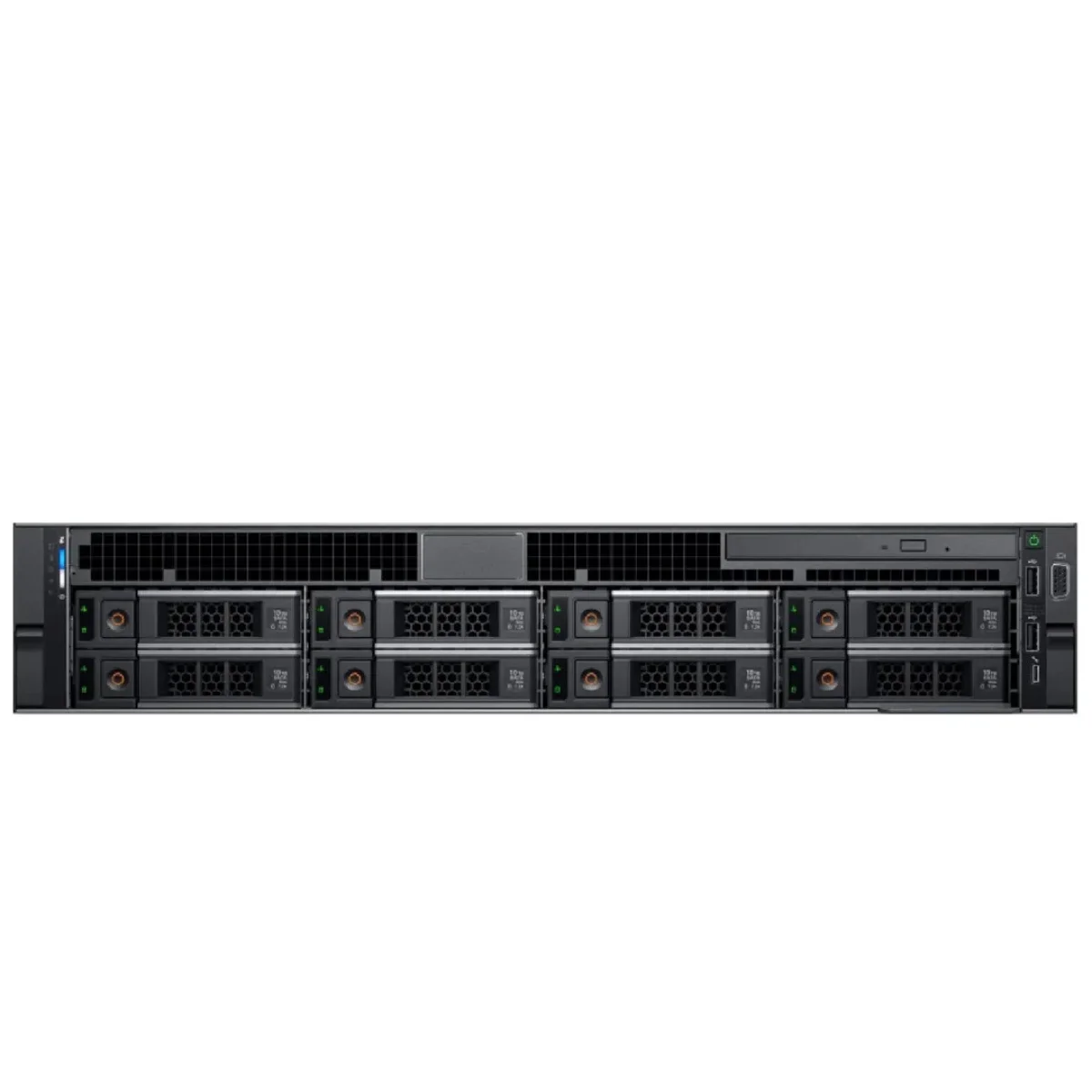

The Dell EMC PowerEdge R540 8×3.5″ Server delivers versatile and reliable performance for modern data centers, offering balance, scalability, and affordability. Designed to meet the demands of a wide range of applications, the PowerEdge R540 8×3.5″ Server combines expandable storage, powerful compute resources, and built-in security, making it ideal for both medium and large enterprises.
Powerful compute performance: Equipped with dual 2nd Generation Intel® Xeon® Scalable processors, each supporting up to 20 cores, enabling high-speed processing for complex workloads.
High-capacity memory: Supports up to 16 DDR4 DIMM slots (RDIMM/LRDIMM) with maximum 1TB memory at 2666MT/s, ensuring smooth multitasking and virtualization performance.
Flexible storage: Front bays support up to 12×3.5” SAS/SATA HDDs (max 192TB) and rear bays support up to 2×3.5” HDDs (max 32TB), while boot optimized M.2 SSDs free up storage for critical applications.
Automated optimization: One-button application tuning automatically optimizes performance based on workload needs.
Comprehensive RAID support: PERC H750, H740P, H730P, H350, H330, and HBA355e with software RAID S140 ensure data reliability and performance.
Built-in security: Includes TPM 1.2/2.0, TCM 2.0, cryptographically signed firmware, Secure Boot, System Lockdown, and System Erase for enterprise-grade data protection.
The Dell EMC PowerEdge R540 8×3.5″ Server is engineered to scale compute resources and storage efficiently, providing:
Up to 14×3.5” drives for high-capacity storage (max 224TB).
Internal M.2 boot drives to optimize storage usage.
Dual Intel Xeon Scalable processors for multi-threaded, high-performance computing.
Optimal deployment for virtualization, cloud workloads, and business-critical applications.
The PowerEdge R540 8×3.5″ Server enables future-proof scaling, adapting to the evolving demands of modern IT infrastructures while maintaining energy efficiency and cost-effectiveness.
Up to 2x 2nd Generation Intel® Xeon® Scalable processors, up to 20 cores per processor
High-speed processing for virtualization, HPC, and enterprise applications
Up to 16 DDR4 DIMM slots, supports RDIMM/LRDIMM
Maximum memory: 1TB at 2666MT/s
ECC memory ensures data integrity and stability
Front drive bays: Up to 12×3.5” SAS/SATA HDDs (max 192TB)
Rear drive bays: Up to 2×3.5” SAS/SATA HDDs (max 32TB)
Boot Optimized Storage Subsystem (BOSS): 2x M.2 SSDs (240GB/480GB)
Internal Dual SD Module for hypervisor boot
RAID controllers: PERC H750, H740P, H730P, H350, H330, HBA355e, Software RAID S140
Optional DVD-ROM/DVD+RW
Platinum 495W, 750W, 1100W, 750W 240V HVDC, 1100W 380V HVDC
Hot-plug redundancy option for power supplies
Up to six fans for efficient cooling and high availability
iDRAC9 with iDRAC Direct and RESTful API with Redfish
Quick Sync 2 BLE/wireless module for at-server management
OpenManage Enterprise, OpenManage Mobile, and OpenManage Power Manager for full lifecycle automation
Integrates with Microsoft System Center, VMware vCenter™, BMC Truesight, Red Hat Ansible® Modules
OpenManage Connections: Nagios®, IBM Tivoli, Micro Focus Operations Manager
TPM 1.2/2.0 and TCM 2.0 optional
Cryptographically signed firmware and Silicon Root of Trust
Secure Boot, System Lockdown, and System Erase for data protection
2x1GbE LOM (optional riser: 2x1GbE, 2x10GbE SFP+, 2x10GbE BaseT)
Front ports: 1x dedicated iDRAC Direct USB, 1x USB 2.0, 1x Video
Rear ports: 1x dedicated iDRAC network, 1x serial, 2x USB 3.0, 1x Video
Optional risers for additional PCIe slots
2U rack-mount server, dual socket
Height: 86.8mm, Width: 434mm, Depth: 703.76mm, Weight: 29.68kg
Optional LCD or security bezel
Enterprise applications: Ideal for databases, ERP, and business-critical workloads.
Virtualization & cloud computing: Efficiently consolidates workloads with high memory and storage density.
High-capacity storage: Perfect for large-scale data storage requirements with 14 drive bays.
Secure and reliable infrastructure: Built-in security and RAID options protect enterprise data.
Automated IT management: OpenManage and iDRAC tools reduce manual workload, improving IT efficiency.
The Dell EMC PowerEdge R540 8×3.5″ Server combines versatility, high performance, and enterprise-grade security. With expandable storage, dual Intel Xeon Scalable processors, and intelligent management tools, the PowerEdge R540 8×3.5″ Server is an ideal solution for modern data centers, virtualization, and scale-out computing. Maximize efficiency, reliability, and ROI with the Dell EMC PowerEdge R540 8×3.5″ Server.
| Form factor | 2U |
|---|---|
| Processor | Up to two 2nd Generation Intel® Xeon® Scalable processors, up to 20 cores per processor |
| No. of processor socket | 2 |
| Ram type | DDR4 |
| Total Memory slots | 16 DIMM slots |
| Max memory | Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 1TB max |
| PCIe slots | Up to 5 x PCIe Gen3 |
| Support hard drive | 8 x 3.5 inch SATA/SAS |
| Support raid controller | Internal controllers: PERC H750, H350, H740P, H730P, H330 External controllers: HBA355e, H840, 12Gb/s Ext SAS HBA Software RAID: S140 |
| Network controller | 2 x 1GbE LOM + (optional) LOM Riser 2 x 1GbE or 2 x 10GbE SFP+ or 2 x 10GbE BaseT |
| I/O Port | -Front ports: 1 x Dedicated iDRAC Direct USB, 1 x USB 2.0, 1 x Video -Rear ports: 1 x Dedicated iDRAC network port, 1 x Serial, 2 x USB 3.0, 1 x Video -With Optional Riser: Non-rear storage config: 1xFH/FL + 1xHH/HL (2U Right riser) slots + 3 HH/HL slots -Rear storage config: 1xHH/HL (1U Left Riser) + 1xHH/HL (1U Right risers) slot or 1xHH/HL (1U Left Riser) + 1x FH/HL (1U Right riser) |
| Power supply | Platinum 495W, 750W, 750W 240V HVDC3, 1100W, 1100W 380V HVDC3 |
| Remote management | iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish Quick Sync 2 BLE/wireless module |
| Operating system | Canonical® Ubuntu® Server LTS Citrix® Hypervisor Microsoft Windows Server® LTSC with Hyper-V Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi |
| Dimensions | Height: 3.44 inches (87.5 mm) Width: 17.52 inches (445 mm) Depth: 25.39 inches (645 mm) |
| Weight | 26.7 kg (58.9 lbs) |
| Operation temperature | 10°C to 35°C (50°F to 95°F) |
